12 Point Terminal Busbar

VTE is happy to offer our 12 Point Power Distribution Block. This system allows for up to 12 electrical connections, each running up to 15 amps continuous. With the optional terminal insulators, the assembly complies with USCG, ISO and ABYC standards requirements.

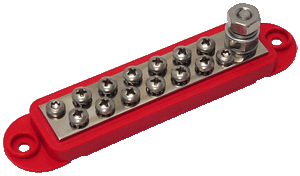

  7712N0N02


12 Point Busbar
7712N0N02

12 Point Busbar
71225N02 with included cover, and included terminal insulator
  • 12 connection points, #8-32 stainless steel screws
  • Amperage:
    • Max continuous: 180 amps @ 12 vdc - 15 amps per connection
    • Max intermittent: 20 amps per connection (less than 1 minute)
  • Max voltage: 48vdc
  • 1/4" stainless steel terminal post
  • Stainless steel hex nuts and lock washer
  • Base Material: Glass-Filled Nylon (Red & Black)
  • Mounting screws: #10 (not included)
  • Mounting center: 4.66 in
  • Shown with included 218 Series terminal insulator and 312 Series 12-point terminal insulator (cover)
  • When used with insulators, meets USCG 33 CFR Subpart I, SAE J2120 8.5 & ABYC E-9.4 H

Part Number Description Color Price
7712N0N02 12 Point Terminal Busbar Red $6.17
7712N0N14 12 Point Terminal Busbar Black $6.04
71225N02 12 Point Busbar w/ Cover & Insulator Red $6.48
71225N14 12 Point Busbar w/ Cover & Insulator Black $6.39
312N9P02 12 Point Busbar Cover Red $0.74
312N9P05 12 Point Busbar Cover Yellow $0.81
312N9P14 12 Point Busbar Cover Black $0.64

Quantity: Subtotal: $ 0.00

Item Color
12 Point Busbar Red
12 Point Busbar w/ Cover Yellow
Cover Only Black


  • Total Order Minimum: $25.00
  • Online prices enjoy a 5% reduction.
  • For commercial quantities, please contact VTE, Inc.
