Single Point Power Distribution Post

770 Series (Small Base)

771 Series (Large Base)



77025N02 (1/4" Post)

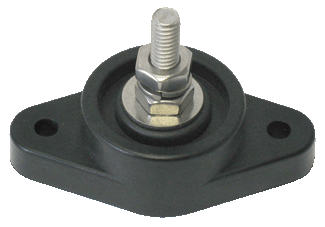

77131N14 (5/16" Post)


With optional terminal insulator - VTE # 795. Click on image to see specifications.

With optional terminal insulator - VTE # 956. Click on image to see specifications.

  • Used to connect two or more voltage lines
  • Hook up negative return lines to single cable
  • Available with large or small base
  • Max Amperage: 160 amps @ 12 vdc
  • Max Voltage: 48 vdc
  • Available in multiple stud heights (optional)
  • Available material : Glass-Filled nylon
  • Available Colors : Red & Black
  • Connection post : Stainless steel
  • Connection nuts : Stainless Steel
  • Flat washer : Stainless steel
  • Spring washer : Stainless steel

Part Number Base Size Mounting Center Post Size Color Price
77010N02 Small 1.36 in #10 Red $2.13
77010N14 Small 1.36 in #10 Black $2.09
77025N02 Small 1.36 in 1/4" Red $2.37
77025N14 Small 1.36 in 1/4" Black $2.29
77031N02 Small 1.36 in 5/16" Red $2.28
77031N14 Small 1.36 in 5/16" Black $2.21
77037N02 Small 1.36 in 3/8" Red $2.45
77037N14 Small 1.36 in 3/8" Black $2.38
77008N02 Small 1.36 in 8mm Red $2.29
77008N14 Small 1.36 in 8mm Black $2.28

77125N02 Large 2.5 in 1/4" Red $3.43
77125N14 Large 2.5 in 1/4" Black $3.18
77131N02 Large 2.5 in 5/16" Red $3.35
77131N14 Large 2.5 in 5/16" Black $3.10
77137N02 Large 2.5 in 3/8" Red $3.22
77137N14 Large 2.5 in 3/8" Black $3.32
77108N02 Large 2.5 in 8mm Red $3.06
77108N14 Large 2.5 in 8mm Black $2.85

Quantity: Subtotal: $ 0.00

Base Size Post Size Color
Small #10 Red
Large .25" ( 1/4" ) Black
.312" ( 5/16" )
.375" ( 3/8" )
8mm


  • Total Order Minimum: $15.00
  • Online prices enjoy a 5% reduction.
  • For commercial quantities, please contact VTE, Inc.
