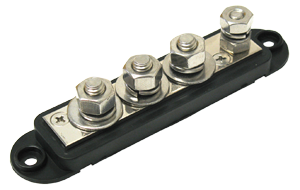

4 Point Terminal Busbar

VTE presents our 4 Point Terminal Busbars. These systems allow for multiple connections to positive and negative systems. Each connection post can maintain multiple connections, making them flexible and robust.


3/8" Positive Bus - 7704N0N02   5/16" Negative Bus - 7705N0N14

RECOMMENDED:

Positive Connections: 3/8"
Negative Connection: 5/16"

4 Point Cover
314N0P00
  • Multiple connection points, to accomodate multiple power connections
  • Secure way to consolidate ground systems
  • Max Amperage: 210 amps @ 12 vdc
  • Max Voltage: 48 vdc
  • 1/4" stainless steel terminal post
  • 3/8" or 5/16" stainless steel connection posts
  • Stainless steel hex nuts and washers
  • Base Material: 16% Glass-Filled Nylon (Red & Black)
  • Mounting screws: #10 (not included)
  • Mounting center: 4.66 in
  • Optional cover not included

Part Number Color Post Size Price
7704N0N02 Red 3/8" $6.25
7705N0N14 Black 5/16" $6.64
314N0P00 Clear 4 Point Busbar Cover $2.45
Alternate Post/Color combinations available as special order only

Quantity: Subtotal: $ 0.00

Item Color
7704 3/8" Busbar Red
7705 5/16" Busbar Black
4 Point Cover Clear


  • Total Order Minimum: $25.00
  • Online prices enjoy a 5% reduction.
  • For commercial quantities, please contact VTE, Inc.
