Power distribution posts offer a quick and low cost solution to getting power to your devices. We offer several lines of distribution posts, for passing current through a barrier, distributing power to several devices, or allowing for power connections outside a device. All our connection devices offer terminal insulation solutions, to keep your products compliant with industry safety regulations.
8 Point Power Distribution
Our 8 Point Distribution Post is a very popular low-cost power post. With a center post of #10 up to 3/8", this power post can handle almost any size cable. (8) 20 amp connections provide connection points to various devices.
1 Point Power Distribution
Single point power posts can be used to connect power lines or consolidate ground lines. Our single point posts come in large and small base, and have post sizes from #10 up to 3/8". At a very attractive cost, our single point posts are easy on the budget and very popular.
Dual Small Base Power Post Holder
Easily fasten 2 small base power posts to a static location. Center divider keeps terminals safe from shorts when installing or servicing connections. Raised platform base lets moisture escape and allows for easy replacement of power posts.
Auxiliary Power Connector
The APC is great for connecting charging systems from the outside of a device. These low cost jumper bushings allow for low amperage (under 50 amp max) charging systems to connect to a battery system from outside the device. Each connector includes a cap insulator when not in use, to protect the connection points from weather and accidental shorts.
Copper Core Jumper Bushing
More beefy than our APC, the Copper Core Jumper Bushing is a big brother, offering much higher amperage for charging and jump starting devices. Designed with a high current transfer core, our CCJB can pass up to 350 amps @ 12vdc. A fastened cover protects the connections when the jump start connecter is not being used.

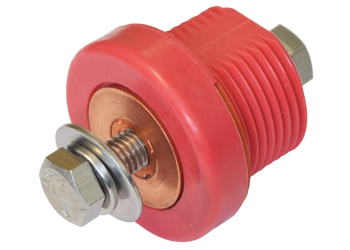

Copper Core Bushing
A great, low cost way to pass high current through a panel. VTE uses a highly effective manufacturing technique to keep labor costs down, as well as using the right choice for materials in the conductivity path and fastening roles. These two aspects keep the performance high, while keeping the end cost down.
Our original high current passing power bushing, the VTE power bushing is robust and sturdy. Strong fastening capabilities offer mounting points to heavy cables, and the brass center post allows for high current transfer. Available with weatherproof option, the Power Bushing can be used in an outdoor application.
