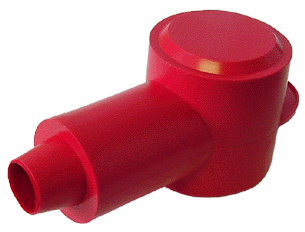

234 Series Lug & Ring Terminal Insulator

234N3V02 Shown

  • Terminal Outside Diameter: 1.37 in
  • Post Height: 1.6 in
  • Inside Grip Diameter: 0.9 in
  • Cable Entry: 1, 2, 3, 4
  • Terminal Length:
    • Normal: 2 in
    • Extended: 2.63 in
  • Nominal Material Thickness: 0.1 in


Part Term Len Cable Entry Color Part Term Len Cable Entry Color
234N1V02 2 in 18 - 10 AWG Red 234E1V02 2.63 in 18 - 10 AWG Red
234N1V14 2 in 18 - 10 AWG Black 234E1V14 2.63 in 18 - 10 AWG Black
234N2V02 2 in 8 - 2 AWG Red 234E2V02 2.63 in 8 - 2 AWG Red
234N2V14 2 in 8 - 2 AWG Black 234E2V14 2.63 in 8 - 2 AWG Black
234N3V02 2 in 2 - 2/0 AWG Red 234E3V02 2.63 in 2 - 2/0 AWG Red
234N3V14 2 in 2 - 2/0 AWG Black 234E3V14 2.63 in 2 - 2/0 AWG Black
234N4V02 2 in 3/0 - 4/0 AWG Red 234E4V02 2.63 in 3/0 - 4/0 AWG Red
234N4V14 2 in 3/0 - 4/0 AWG Black 234E4V14 2.63 in 3/0 - 4/0 AWG Black
Normal Length Extended Length
$2.09 each $2.47 each

Quantity: Item Subtotal: $ 0.00

Length Cable Entry Color
Normal Entry 1 / 18g-10g Red
Extended Entry 2 / 8g-2g Black
Entry 3 / 2g-2/0g
Entry 4 / 2/0g-4/0g


  • Total Order Minimum: $25.00
  • Online prices enjoy a 5% reduction.
  • For commercial quantities, please contact VTE, Inc.
