Heavy Duty Single Point Power Posts

Connect and consolidate positive and negative power lines. Extend power lines to different locations, or split lines into several locations. Can be mounted in any orientation, and stainless hardware resists corrosion.

Click to see

M10 - 10mm Post - 77510M
M12 - 12mm Post - 77512M
1/2" - 1/2" Post - 77512N




77510M0N02

77510M0N14

M10 x 1.5 x 45mm S.S. Hex Bolt
Stainless Steel Washers & Nuts
Glass Filled Nylon Base


Dual Cable Terminal Insulator 956 Series
( 775 10mm posts only )


Dual Cable Terminal Insulator 375 Series

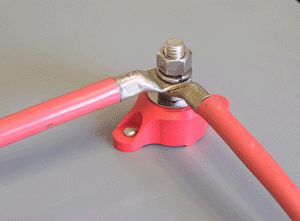

  • Connect 2 or more power lines
  • Hook up negative return lines to a single cable
  • Strong stable base will withstand heavy torque and pulling force
  • Designed for use in marine environments: resists saltwater corrosion
    • Stainless steel connection post
    • Stainless steel flat washer
    • Stainless steel lock washer
    • Stainless steel nuts
  • Maximum voltage: 0 - 48 VDC
  • Maximum current: 250 amps @ 12 VDC
  • Base material: Glass-filled nylon
  • Available in: Red & Black
  • Mounting holes distance: 2.5 in

Multi Cable Terminal Insulator 795 Series

Multi Cable Terminal Insulator 375 Series

Post Material / Conductive Nuts Spring Washer / Fastener Nuts Post Size Part Number Color Price
Marine Grade Stainless Steel / Stainless Steel Stainless Steel / Stainless Steel 10 mm 77510M0N02 Red 2.97
77510M0N14 Black 2.80
12 mm 77512M0N02 Red 3.25
77512M0N14 Black 3.08
1/2" 77512N0N02 Red 3.32
77512N0N14 Black 3.15

Quantity: Subtotal: $ 0.00

Usage Grade Post Size Color
Marine 10mm Red
12mm Black
1/2"


  • Total Order Minimum: $25.00
  • Online prices enjoy a 5% reduction.
  • For commercial quantities, please contact VTE, Inc.
