10 Point Terminal Busbar

VTE is happy to offer our 10 Point Power Distribution Block. This system allows for up to 10 electrical connections, each running up to 15 amps continuous. With the optional terminal cover, the assembly complies with USCG, ISO and ABYC standards requirements.


771025N0N02   771025N0N14


10 Point Cover
724N3P05
  • 10 connection points, #8-32 stainless steel screws
  • Amperage:
    • Max continuous: 150 amps @ 12 vdc - 15 amps per connection
    • Max intermittent: 20 amps per connection (less than 1 minute)
  • Max Voltage: 48 vdc
  • (2) 1/4" stainless steel terminal posts
  • Stainless steel hex nuts and lock washer
  • Base Material: Glass-Filled Nylon (Red & Black)
  • Mounting screws: #10 (not included)
  • Mounting center: 4.66 in
  • When used with insulators, meets USCG 33 CFR Subpart I, SAE J2120 8.5 & ABYC E-9.4 H

Part Number Description Color Price

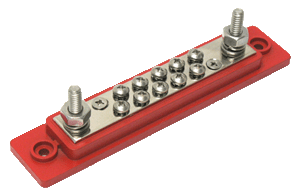

771025N0N02 10 Point Terminal Busbar Red $6.49

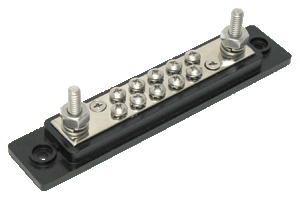

771025N0N14 10 Point Terminal Busbar Black $6.40
724N3P02 Red Cover w/ Retainers Red $3.09
724N3P05 Yellow Cover w/ Blue Retainers Yellow $3.33
724N3P14 Black Cover w/ Retainers Black $2.95

Quantity: Subtotal: $ 0.00

Item Color
10 Point Busbar Red
Cover Yellow
Black


  • Total Order Minimum: $25.00
  • Online prices enjoy a 5% reduction.
  • For commercial quantities, please contact VTE, Inc.
