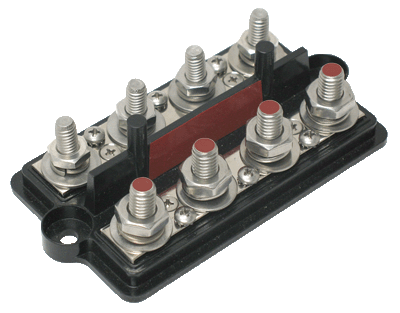

Dual 4 Point Terminal Busbar

VTE presents our Dual Terminal Bus. This systems allow for multiple connections to positive and negative systems on one connection block. Each connection side can maintain multiple connections, of differing size.

3/8" Positive / 5/16" Negative Bus - 738834N0N14

RECOMMENDED:

Positive Connections: 3/8"
Negative Connection: 5/16"

Dual 4 Point Cover
738N3P05
  • Multiple connection points, to accomodate multiple power connections
  • Nickel Plated Brass contact plate: high current & anti-corrosive
  • Secure way to consolidate ground systems
  • Max Amperage: 250 amps @ 12 vdc total
  • Max Voltage: 48 vdc
  • Positive: 3/8" stainless steel connection posts
  • Negative: 5/16" stainless steel connection posts
  • Both polarity sides offer 3 smaller 15amp connection points
  • Base Material: Glass-Filled Nylon (Red & Black)
  • Mounting screws: #10 (not included)
  • Mounting center: 4.9 in
  • Optional cover not included
  • Also available with 3/8" connection posts on both sides
  • Also available with 5/16" connection posts on both sides
  • To meet some safety guidelines, protective heat shrink tubing must be used on terminal barrel to insulate against accidental shorts.

Part Number Color Posts Side A Posts Side B Price
738837N0N02 Red 3/8" 3/8" $13.42
738834N0N14 Black 3/8" 5/16" $13.04
738831N0N14 Black 5/16" 5/16" $12.39
738N3P05 Yellow $3.53


Quantity: Subtotal: $ 0.00

Item to Order
Dual 4 Point Busbar, 3/8" & 3/8", Red
Dual 4 Point Busbar, 3/8" & 5/16", Black
Dual 4 Point Busbar, 5/16" & 5/16", Black
Cover Only, Yellow


  • Total Order Minimum: $25.00
  • Online prices enjoy a 5% reduction.
  • For commercial quantities, please contact VTE, Inc.
