232 Series Lug & Ring Terminal Insulator

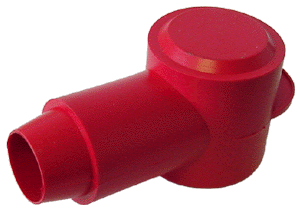

232N4V02 Shown

  • Terminal Outside Diameter: 1.28 in
  • Post Height: 1.5 in
  • Inside Grip Diameter: 0.9 in
  • Cable Entry: 1, 2, 3, 4
  • Terminal Length:
    • Normal: 1.75 in
    • Extended: 2.38 in
  • Nominal Material Thickness: 0.1 in


Part Term Len Cable Entry Color Part Term Len Cable Entry Color
232N1V02 1.75 in 18 - 10 AWG Red 232E1V02 2.38 in 18 - 10 AWG Red
232N1V14 1.75 in 18 - 10 AWG Black 232E1V14 2.38 in 18 - 10 AWG Black
232N2V02 1.75 in 8 - 2 AWG Red 232E2V02 2.38 in 8 - 2 AWG Red
232N2V14 1.75 in 8 - 2 AWG Black 232E2V14 2.38 in 8 - 2 AWG Black
232N3V02 1.75 in 2 - 2/0 AWG Red 232E3V02 2.38 in 2 - 2/0 AWG Red
232N3V14 1.75 in 2 - 2/0 AWG Black 232E3V14 2.38 in 2 - 2/0 AWG Black
232N4V02 1.75 in 3/0 - 4/0 AWG Red 232E4V02 2.38 in 3/0 - 4/0 AWG Red
232N4V14 1.75 in 3/0 - 4/0 AWG Black 232E4V14 2.38 in 3/0 - 4/0 AWG Black
Normal Length Extended Length
$2.12 each $2.30 each

Quantity: Item Subtotal: $ 0.00

Length Cable Entry Color
Normal Entry 1 / 18g - 10g Red
Extended Entry 2 / 8g - 2g Black
Entry 3 / 2g - 2/0g
Entry 4 / 2/0g - 4/0g


  • Total Order Minimum: $25.00
  • Online prices enjoy a 5% reduction.
  • For commercial quantities, please contact VTE, Inc.
